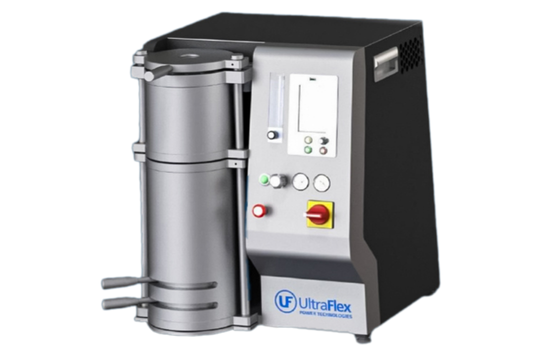

Dual-Chamber Injection Casting System with Pressure Over Vacuum
Manual chamber sealing and pressure casting at 2.5 bar, with a manual flask lift option.
Compatible with flasks featuring an optional flange.
Centrally positioned graphite stopper rod within the crucible for enhanced casting precision.
Precise temperature regulation using an embedded thermocouple.
Customizable settings with 10 programmable cycles, each supporting up to 10 parameters.
Integrated high-capacity vacuum pump: 100 mbar with an 8 m³/hr output.
Argon consumption requirement: max 60 L at 2 bar.
This system is designed for precision and versatility in casting applications.
